MIL-PRF-87260 Foam Material, Explosion Suppression, Inherently Electrostatically Conductive, For Aircraft Fuel TanksThis document covers the requirements for an electrically conductive open-celled foam material that will be used for explosion suppression in aircraft fuel.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11

MIL-PRF-87260B(USAF)

APPENDIX A

TANK VENT

(2 INCH I.D.)

PROBE OPENING

(3/4 INCH) WITH

TEFLON INSULATOR

FUEL INLET

(3/4 INCH O.D.)

TANK LID

(22-1/2 INCH O.D.)

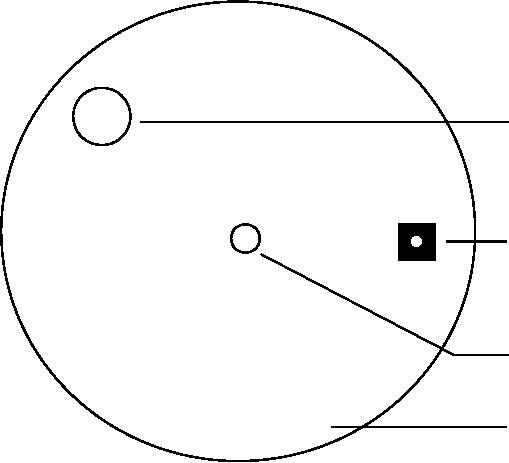

FIGURE A-3. Tank lid for the uppermost tank of the fuel impingement test rig.
