MIL-STD-2199A APPENDIX A


FIGURE A                                                                                                 compound.

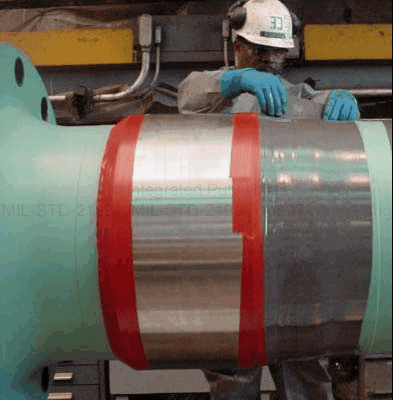

FIGURE A-12.  Completion of shaft-to-sleeve fairing with sealing/fairing compound.


e.    It is possible to apply sealing/fairing compound to a stationary shaft section, but this requires more skill and experience.

f.     Allow a minimum of 2 hours for the sealant to cure.  DO NOT solvent wipe the cured surface prior to application of the GRP.


20
